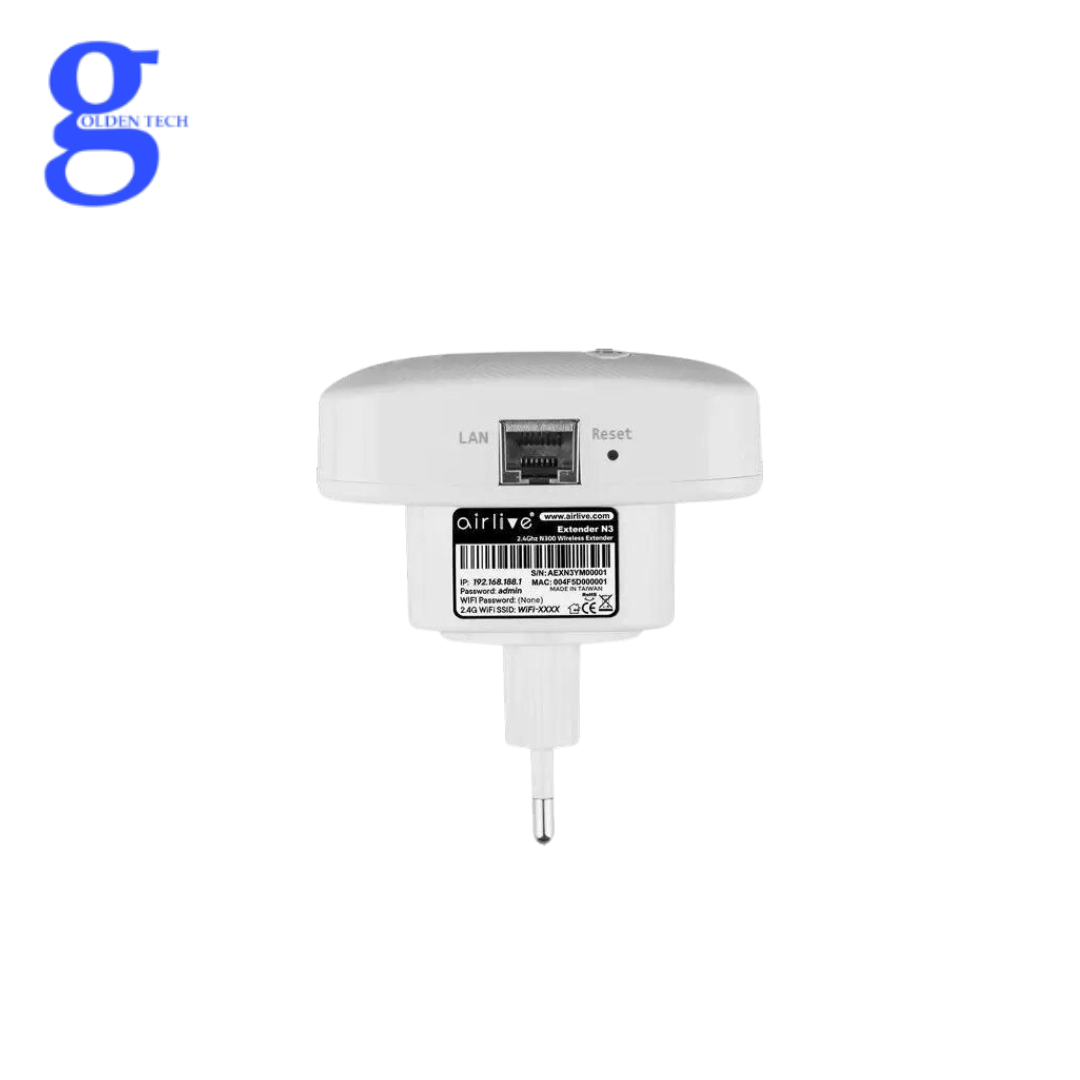

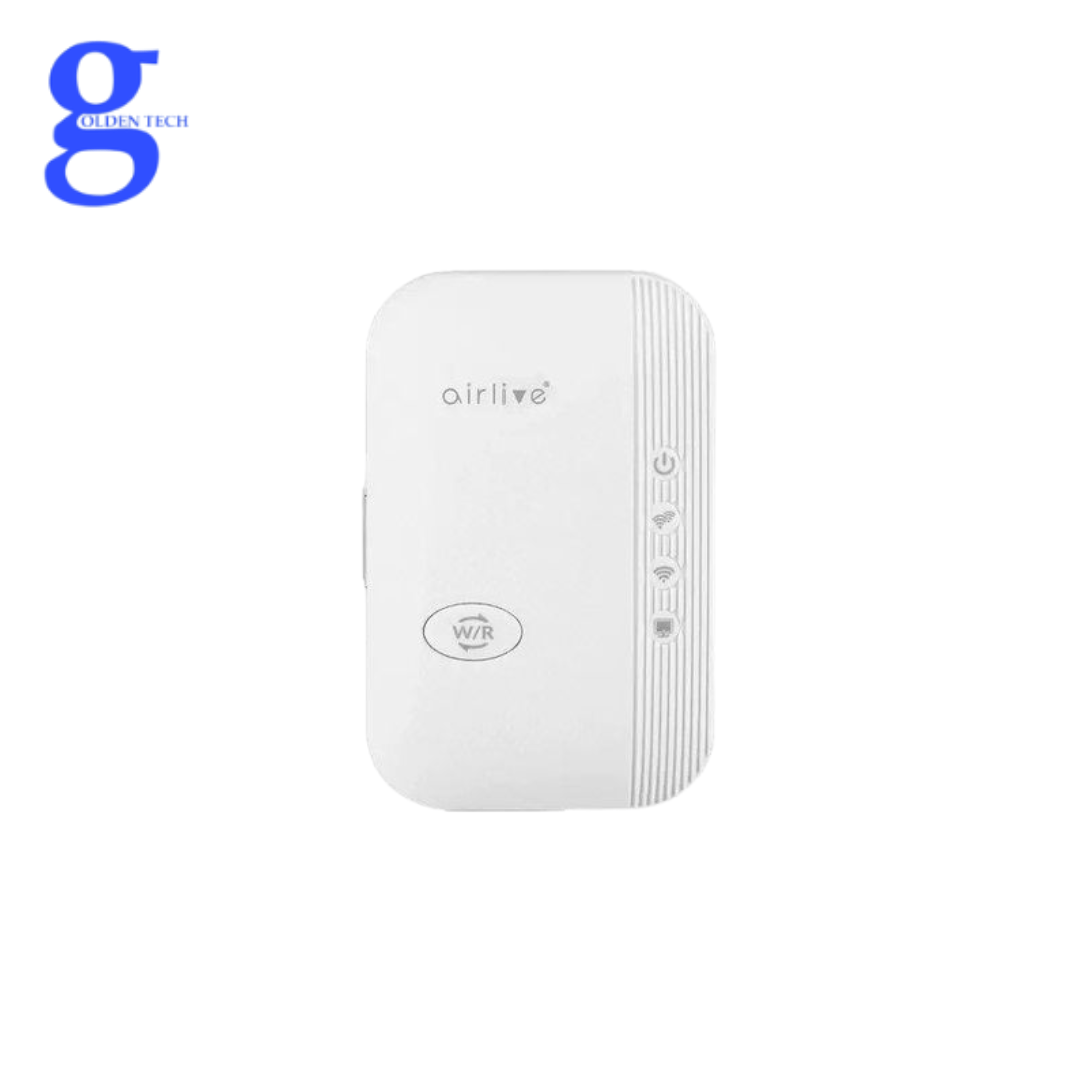

AIRLIVE N3 EXTENDER

Brand: AirLive

Model: N3

Wi‑Fi generation: Wi‑Fi 4

Wireless standard: IEEE 802.11 b/g/n

Network protocols: IPv4, IPv6, TCP/IP, DHCP, NAT

WAN Ports: None

LAN ports: 1 × 10/100Mbps RJ45 port

LED indicators: Power, WLAN, LAN, Signal Strength

Buttons: WPS button, Reset button

Wireless Data Rate: Up to 300Mbps

Frequency band: 2.4 GHz

Antenna: Integrated antenna

Interface: Fast Ethernet LAN port

VPN Support: Not supported

Power supply: 100–240V AC (built-in plug)

Weight: 0.20 kg

Security: WEP (64/128-bit), WPA, and WPA2 encryption

WPA Protocol: WPA/WPA2-PSK encryption

Throughput: 300 Mbps (theoretical)

Link Aggregation: Not supported

Features: Easy setup via WPS button, plug-and-play, extends wireless coverage

Special features: Integrated-antenna design, compact wall-plug signal booster

Certifications: IEEE 802.11 b/g/n, IEEE 802.3, IEEE 802.3u

Operating range: Up to 100 m indoors / 300 m outdoors (depending on environment)

Dimensions: 80 × 60 × 45 mm

Operating mode: Signal booster / wireless repeater (Repeater / Extender)

Temperature: Operating: 0 to 40°C; Storage: -20 to 70°C

Device management: Web-based UI, and WPS button

Mobile Network Support: Not supported
